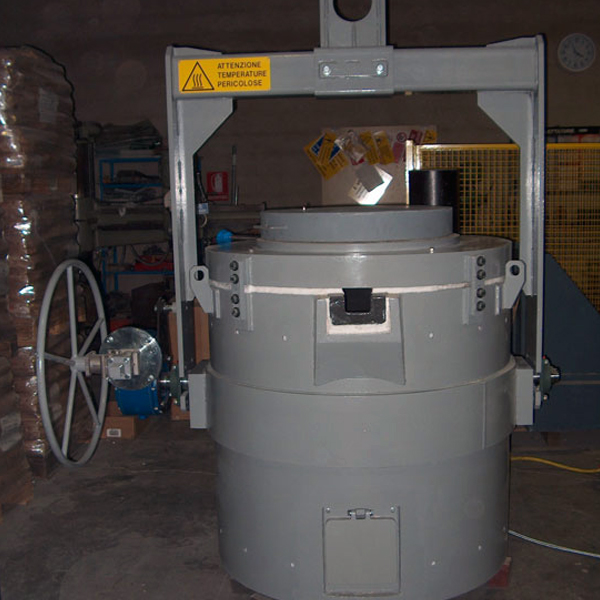

Ladle with gas heating capacity 600 Kg

drawbacks due for the higher temperature. These are key points, for the high premium sand casting production;


• casting operation free of turbulences, due to the crucible neck profile, casting friendly positioning obtainable by the strict axis bal out rotating operation;
• the casting metal temperature of the Al alloys is super controlled in a restrict “range”;
• the optimal casting parameters are reproducible constantly;
• the insulated lid avoid freezing, protect the liquid metal and ensure better security for the employers during the ladle translation;
• electric connectors friendly use.

Metallic housing
Calendared sheet metallic frame, reinforced with rolled sheets and ribbed support. Tilting true a gear manual wheel reduced box; the centraòl position on the axing of the tilting device, guarantee a precise and accurate metal flow rate.

Heating
The annular internal heating resistance shows an higher yield, due to the maximum available free heat surface, without refractory concrete on it. This solution, combined with the best materials available, ensuring maximum longevity to the heating.

Insulating-Refractory lining
The multilayer internal lining, guarantees the lowest external surface temperature of the frame, with the highest mechanical resistance on the internal anular electric resistance elements; are combined high insulation layer plus alumina pre sgape pieces.

Electric main cabinet control
The electric power is controlled by two thermocouples, one immersed into the liquid metal, and the second one into the heating chamber. Power units for electric heating is static.
