FFV700
Characteristics

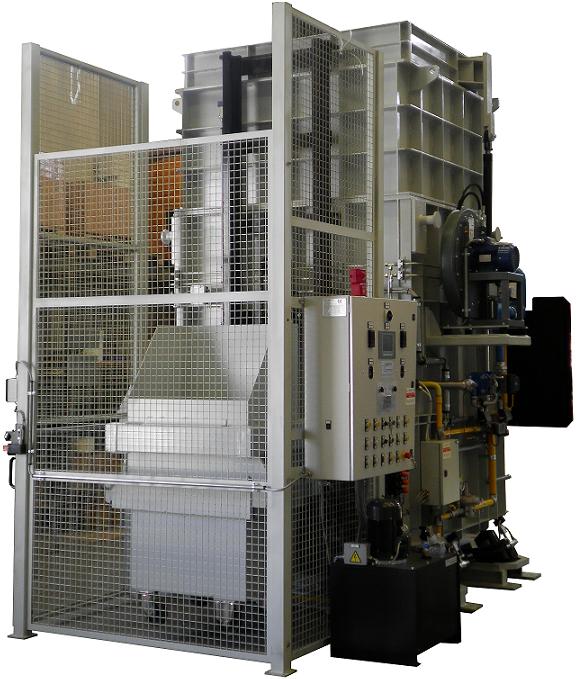

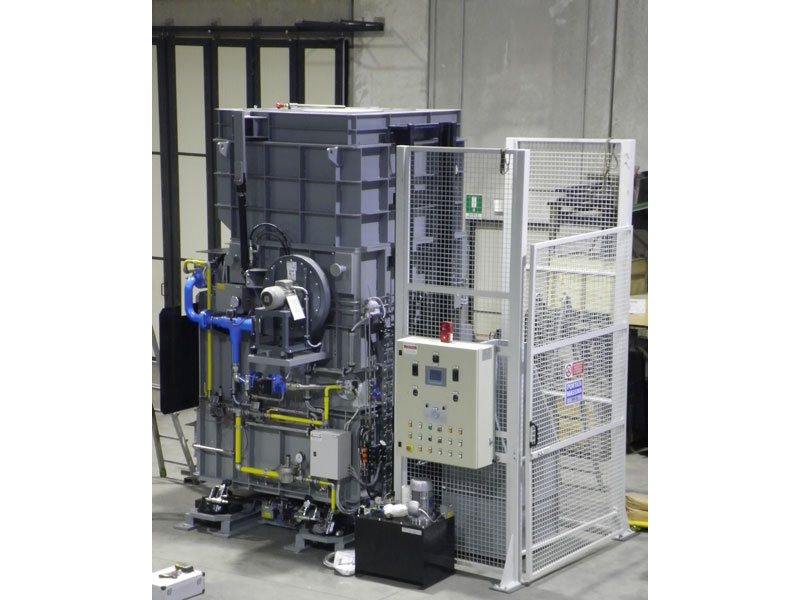

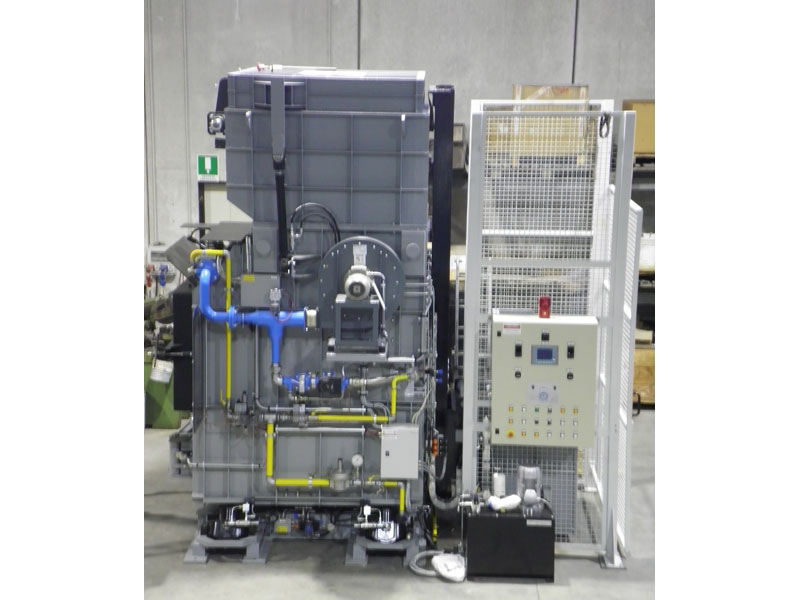

Melting stalk furnace, dry hearth, tilting in axes on the exit neck, to transfer the liquid Al alloys. It is characterized by a very high efficiency, reduced dimensions and does not require special transport. Automatic loader managed by software.| Tank capacity | 1000 Kg of molten aluminium |
| Melting capacity | 500 - 700 Kg / h |
| Bath max temperature | 800 °C |
| Refractory max temperature | 1000 °C |
| Combustible gas | Natural Gas - GPL on request |
| Number of burners | 2 |
| Max rating | 400.000 KCal/h |
| Max consumption | ~50 m3 / hour |
| Specific consumption | 70 m3 / Ton |
| Installed power management | From 0 to 100% with limit of maximum |
| Power supply | Three-phase, 380 V / 50 Hz |
| Max electric power | 10 Kw |
| Metal temperature adjusted continuously by the submerged thermocouple | |
| Limitation of max reachable temperature value in the melting furnace, by thermocouple in the refractory furnace walls | |
| Automatic charging sequence and proceeding, supervisor by the exit fume temperature | |
| Capacità | --DEMO-- |
| Temperatura max | --DEMO-- |
