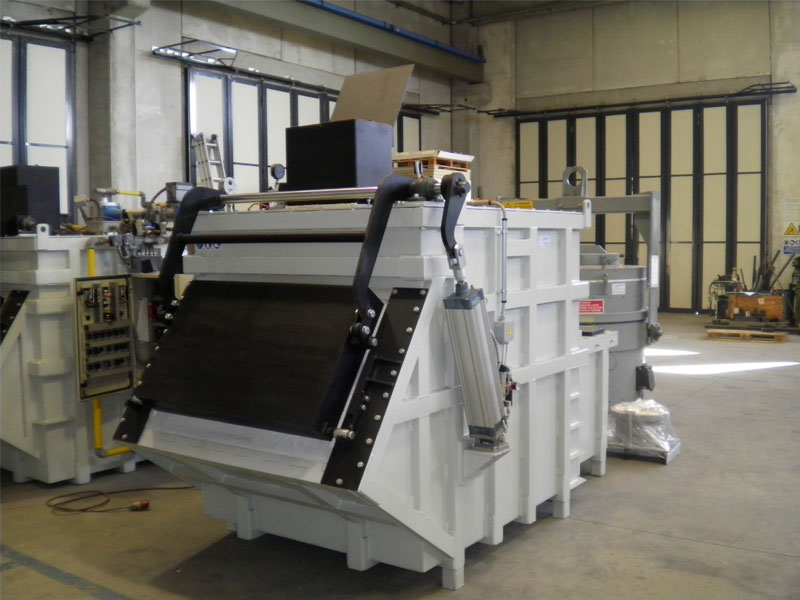

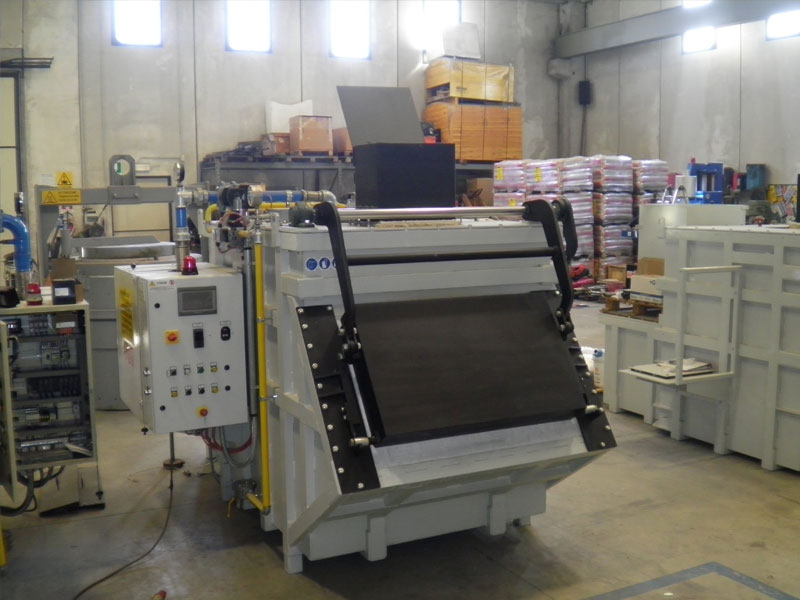

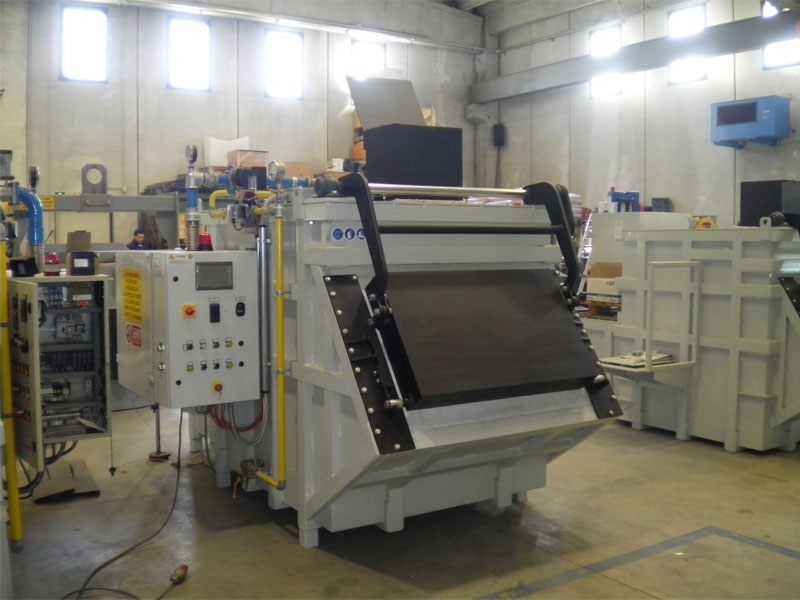

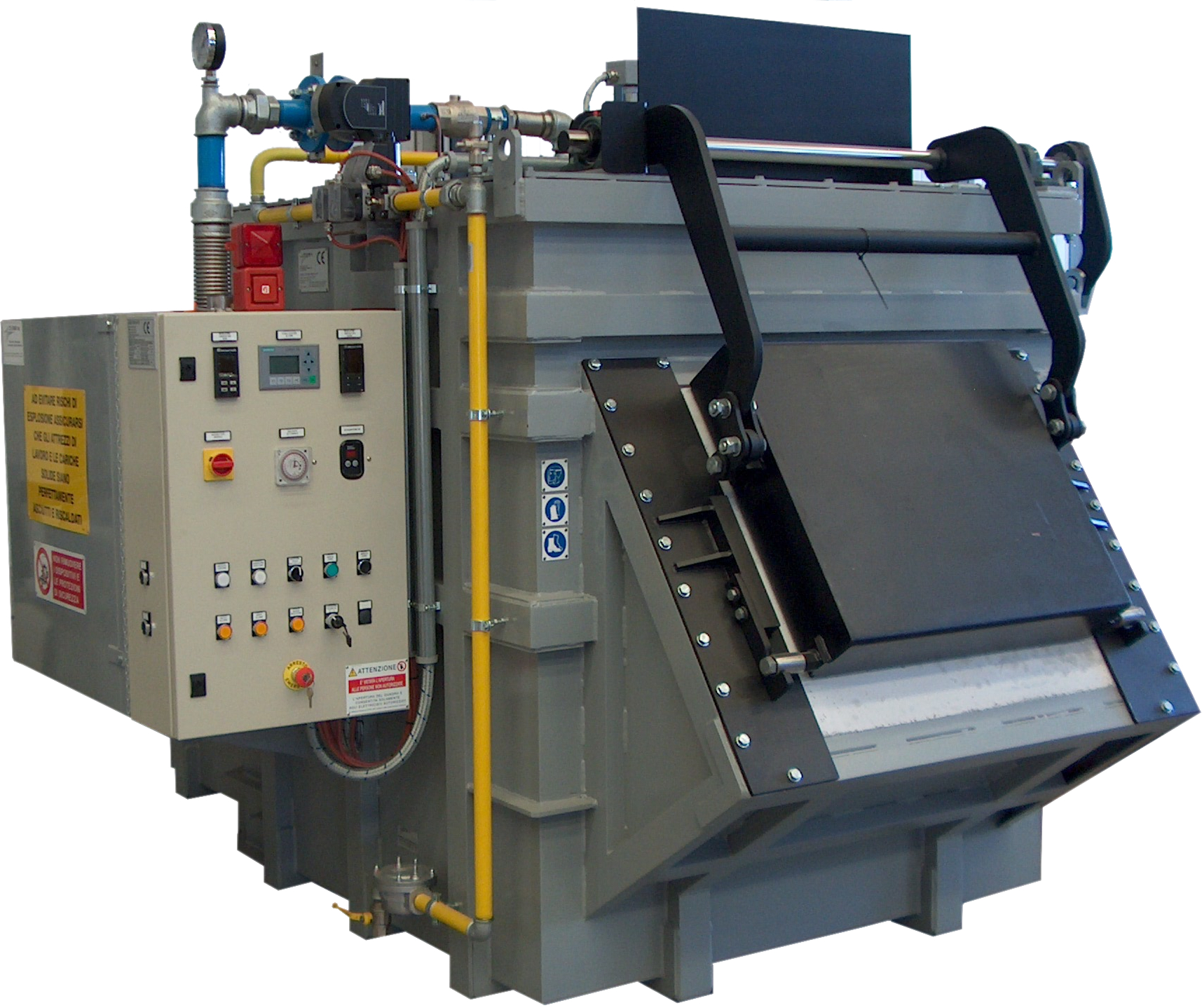

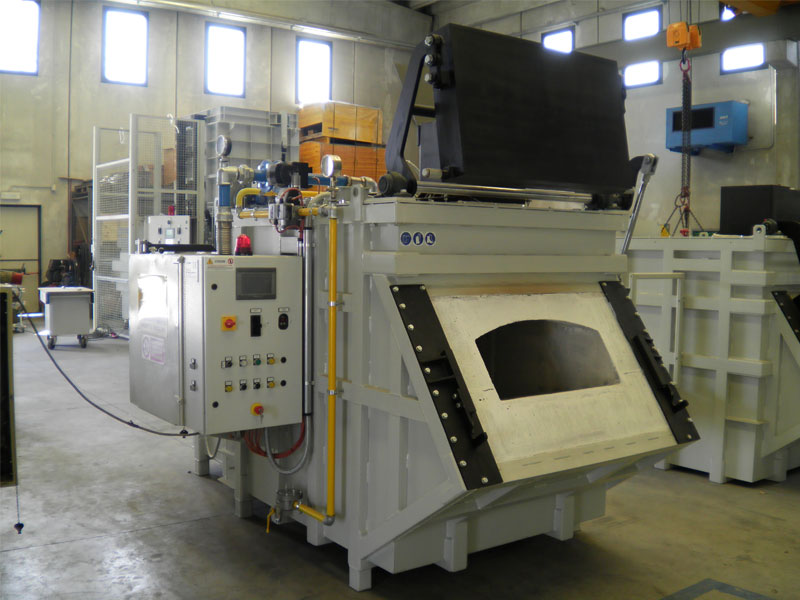

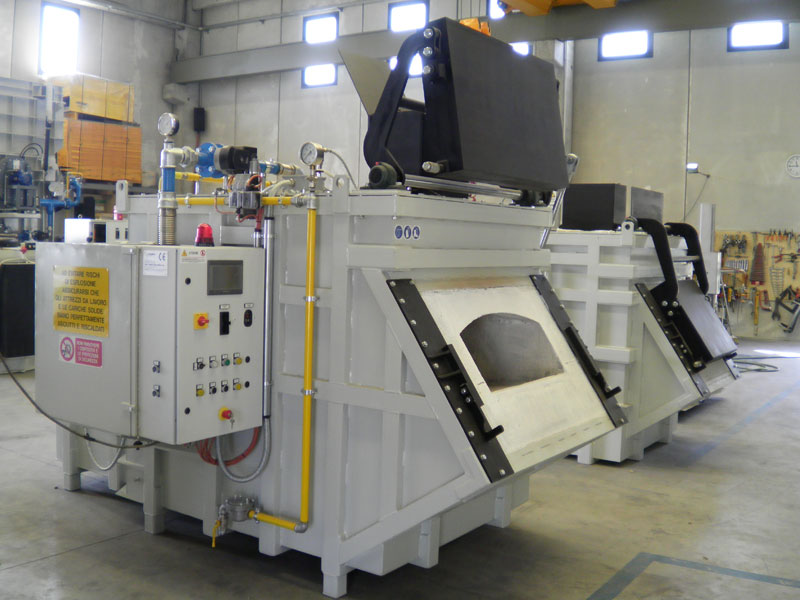

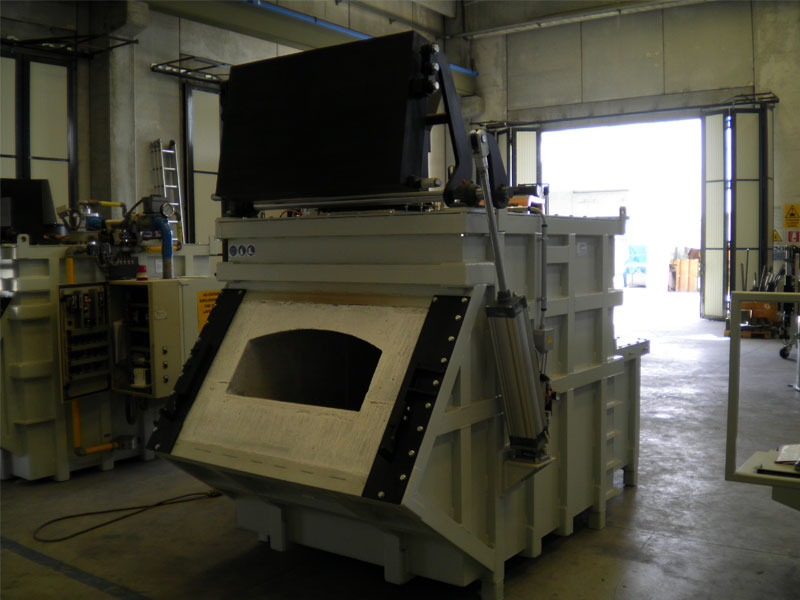

FFA1000 - FFA1500
Characteristics
Cheap and versatile; basin furnace suitable for feed small presses or limited productions in gravity. The wide sloped door allows easy refilling with ladle.
| Capacity | 1500 Kg molten aluminium |
| Max bath temperature | 800 °C |
| Max refractory temperature | 1000 °C |
| Combustible gas | Natural gas - Gpl on demand |
| Number of burners | 1 |
| Burner type | Flat flame - max rating 160.000 KCal/h |
| Installed power management | From 0 to 100% with limit of maximum |
| Power supply | Three-fase, 400 V / 50 Hz |
| Auxiliary services | 110 V C.A. (Left out starting UV probes, working at 220 V C.A.) |
| Gas pressure feeding | From 0,1 to 0, 5 bar |
| Holding consumption | 3 Nm3/h |
| Melting consumption | 20 Nm3/h |
| Melting capacity | about 150 Kg/h |
| Specific consumption | about 120 m3/ton |
| Machine weight | 7500 Kg |
| Continued and automatic control of molten aluminium temperature, by thermoregulator with thermocouple in the bath | |
| Thermo-limit of refractory temperature by thermoregulator non visualized and thermocouple in the wall | |
